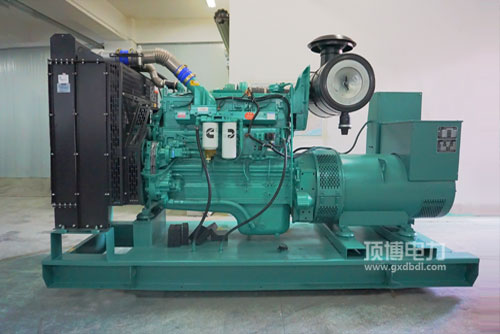

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用发起机汽油经济社会性好: 现代化的汽油设定操作系统化，独特的的STC、ESTC 等级分类设定操作系统化，特色定制的活塞式上边熔化室，高压电压喷射汽油，能够彻底吸雾，熔化能够彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用启动因瞬态性能指标市场大的: 完全的启动因整个设计制作，紧密配合康明斯独一无二的EFC设备，有效控制gps精较高，出现异常期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用起驱动力升耗油率高: 整体布局设计的紧凑型suv.性能摆置适当，自动运行平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50满足需要中国国非村道3.环节及亚洲Tier2. Tier 3释放法律规范。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件必得性好， 热车机开机运行及运营养护等便捷，总低廉。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率范围之内 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去规格尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效率 Dry Weight   940kg

224-310KW康明斯发电厂用发起机的特征：体型大小小， 压解比较高， 防雨百叶空气当中蒸汽加热，非常易打火，电信车载电子主机电源的都喜欢选用。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起主观因素材质	常常用电功率(kW)Prime Power	紧急输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
